Available

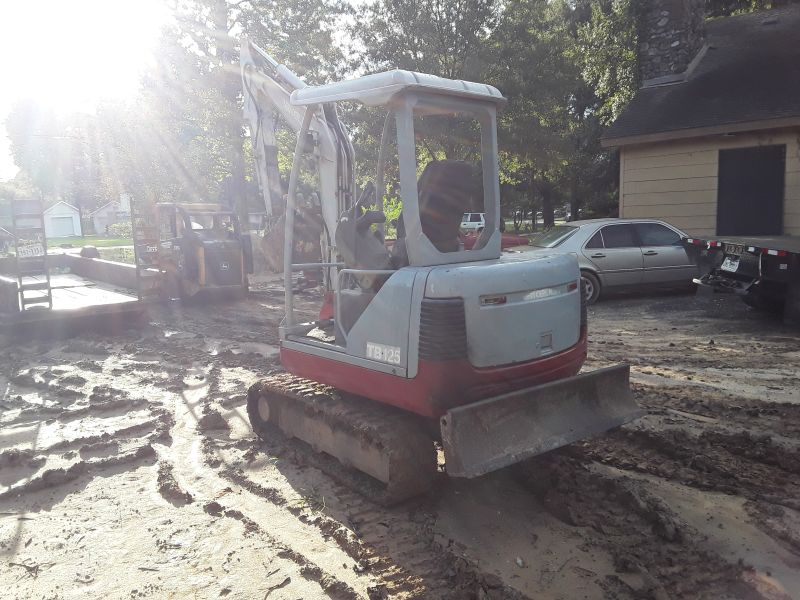

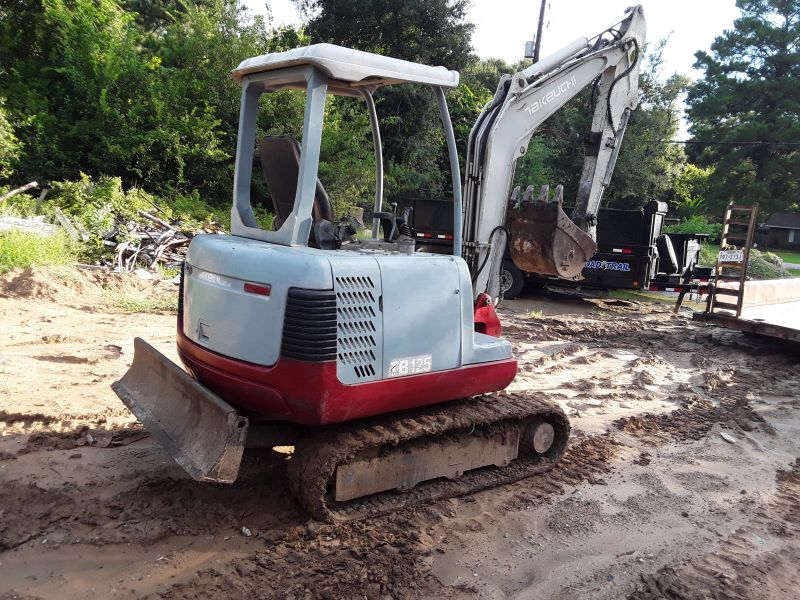

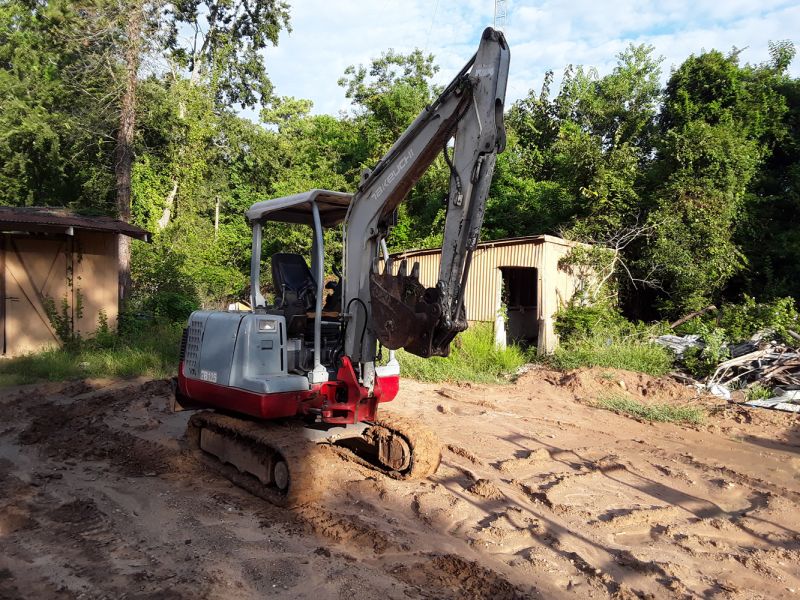

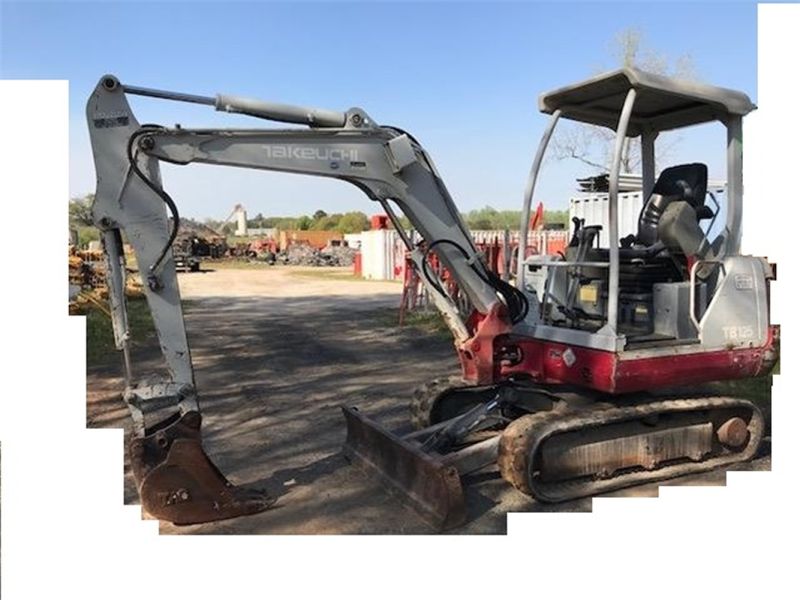

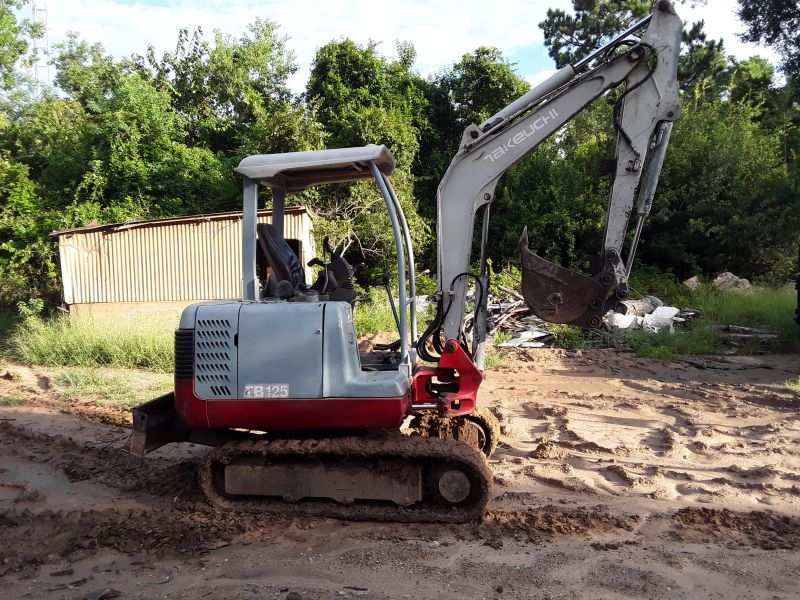

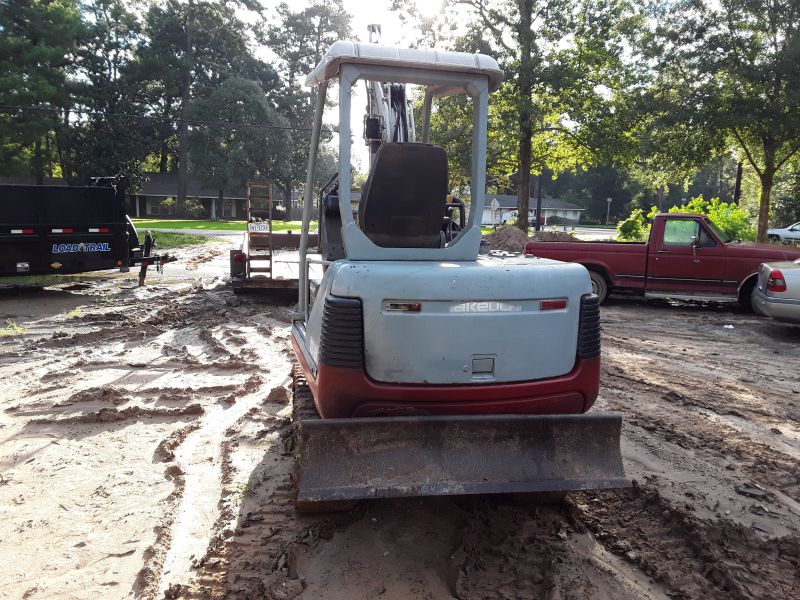

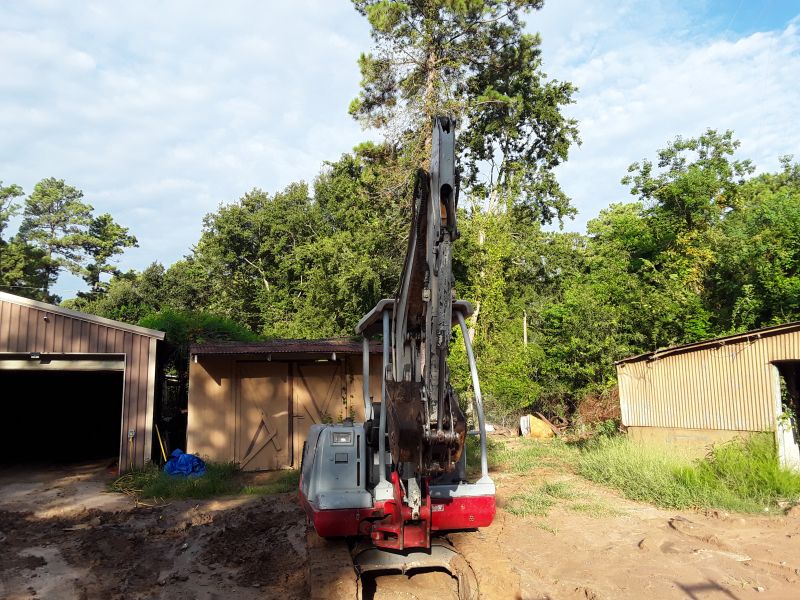

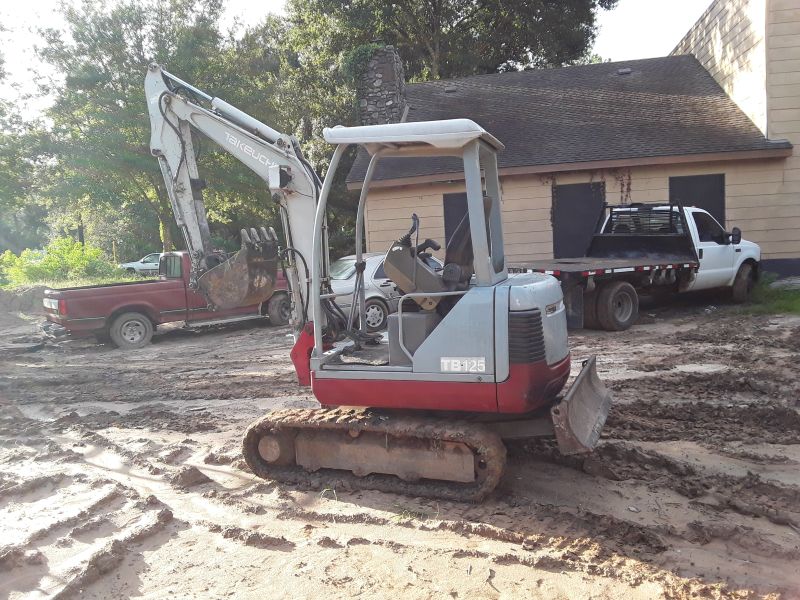

Takeuchi TB125 Mini Excavator

Diminstions
Shipping Length Of Unit14.83ft in
Max Loading Height10.42ft in
MMax Reach Along Ground15.5ft in
Max Vertical Wall Digging Depth7.42ft in
Max Digging Depth9.5ft in
Width To Outside Of Tracks4.75 in
Length Of Track On Ground4.91ft in
Ground Clearance0.99ft in
Height To Top Of Cab8ft in
Tail Swing Radius4.25ft in
Shoe Size12in
Max Travel Speed3mph
Number Of Cylinders3
Gross Power22.5hp
Max Torque62lb ft
Fuel TypeDiesel
Operating Weight6165 lb
Fuel Capacity13.4ga
Cooling System Fluid Capacity1gal
Hydraulic System Fluid Capacity19.6gal
Engine Oil Capacity1gal
Operating Voltage12VDC
Alternator Supplied Amperage40amps
Hydraulic System Relief Valve Pressure2987psi
Hydraulic Pump Flow Capacity15.4gal/min
Swing Speed9.6rpm

2004.
